GETTING STARTED
REGIONS

mydigitalstructure endpoint are hosted in 4 regions (nodes) globally.

The shared service is currently only active on the AU node,
i
solated services are available in all regions - pricing.

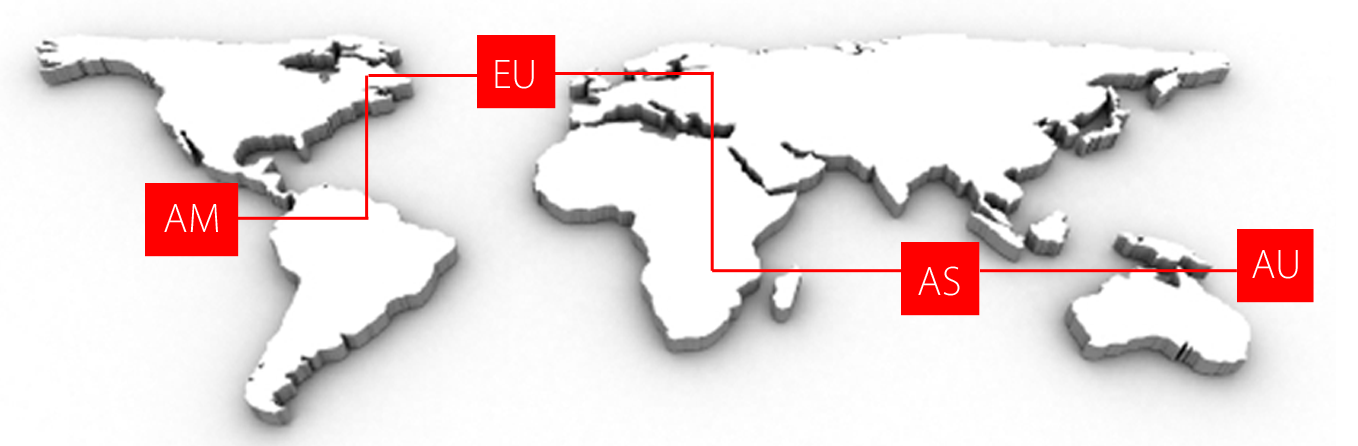

ibCom_Operations_Infrastructure_Regions_Map

* "http state channel" is distributed, lines are shown chained for simplicity only.

  • API: https://[region code].mydigitalstructure.com

  • Platform: http(s)://*.[region code].1blankspace.com


The default http(s)://*.1blankspace.com URI is serviced by the AU endpoint node.


mydigitalstructure & AWS
REGIONS
Code Name Hosted (AWS Region/Zone) Active URIs
AU Australia Australia (Sydney) https://au.mydigitalstructure.com
https://*.1blankspace.com
AS Asia  Signapore
EU Europe Ireland
UK United Kingdom Ireland
AM America United States (North Viginia)

SPACES
When you set up a space, you can choose:
  • the region for your space and thus where your data is stored

  • to optionally lock your space - which stops replication for the http state channel.  Typically done for governance/sovereignty requirements.  It reduces redundancy significantly.

DESIGN

mydigitalstructure uses a "http state channel" to replicate state changes to multiple regions, based on single on-region http request.

It is self-organising - in that if any one region should go offline - using DNS level TTL switching and other region will take over.  When the offline region comes back online it sends a request out to find the region with the best knowledge of the missing state information and requests a "replay" of the missing state.  Once this is complete, it announces itself as available.


More about continuity
